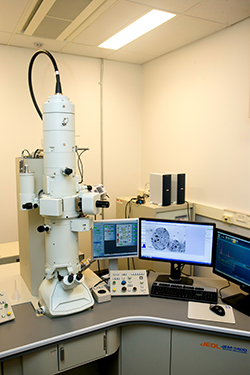

Technical Details

• Resolution (Lattice Image/ Point Image): 0.20 nm/ 0.38 nm
• Illumination Emitter: Precentered single-crystal LaB₆ filament
• Accelerating Voltage (Steps/ Variable steps/ Stability): 40, 60, 80, 100, 120 kV/ 33 V min. / 2 x 10^-6 per min
• Magnification (Mag mode/ Low Mag mode): x 5,000-2,000,000/ x120-4,000
• Specimen Stage: microactie goniometer with piezo drives
• Specimen Chamber (Specimen per Load/ specimen Tilt Angle (X-axis)): 1/ ±25˚ (±70˚ with optional holder)
• Specimen Movements (X, Y, Z Direction): ±1.0 mm, ±1.0 mm, ±0.5 mm
• Equipped with Anticontamination Device and Cryofin
• Equipped with Gatan ORIUS SC1000B CCD Camera
• Equipped with energy dispersive X-ray and Oxford X-MAX 80 T detector
• Maximize throughput and low energy sensitivity
• Optimized take-off angle for best peak-to-background ratios and light element detection
