atomic force MICROSCOPE

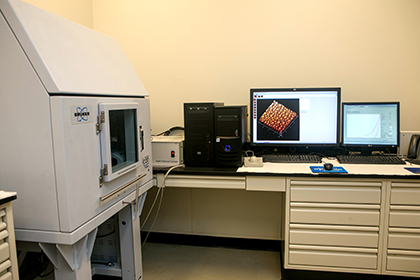

Bruker Dimension ICON

Technical Details probe

  • Multimode available:

PeakForce Tapping
ScanAsyst in Air/ Fluid
Contact Mode in Air/ Fluid
Tapping Mode in Air/ Fluid
Scanning Tunneling Microscopy (STM)
PeakForce QNM (Quantitative Nanomechanical Mapping)
PeakForceTUNA
Surface potential detection (Kelvin Probe FM)

  • Heating and Cooling:

Execute temperature control and thermal analysis on samples from -35˚C to 250˚C while scanning in various modes.

  • Scanner specifications: 90 µm X 90 µm in X-Y direction; 6 µm in Z direction
  • Sample size: ≤ 200 mm (8 inch) in diameter and ≤ 15 mm (0.65 inch) in thickness
  • Applications:

Materials mapping
Nanomechanics characterization
Nanoelectrical characterization
Biological characterization
