Pictures of Diode Laser Project

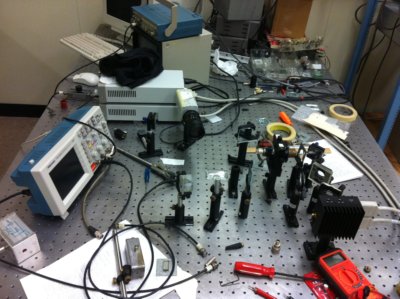

The general set-up of the experiment

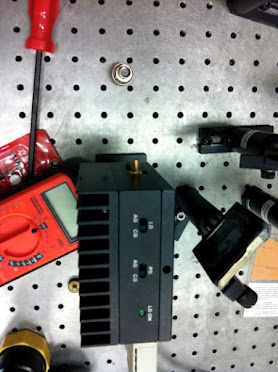

The Thorlabs LASER that was being tested

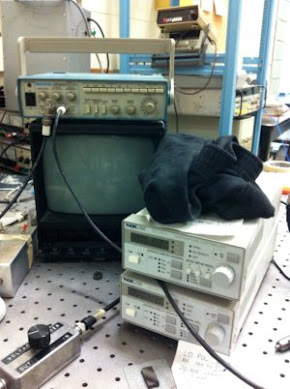

To the left
The Television screen (bottom), Function Generator (top)
To the right
The Temperature controller (top),
the Current Controller (bottom)

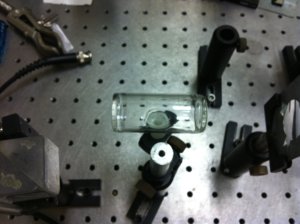

The laser beam was directed through this Rubidium cell to search for the fluorescence of specific fine transitions

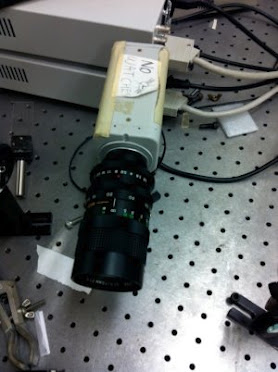

The CCD camera was hooked up to an old television screen to see the infrared emission from the Rubidium
(commonly refered to as a security camera)

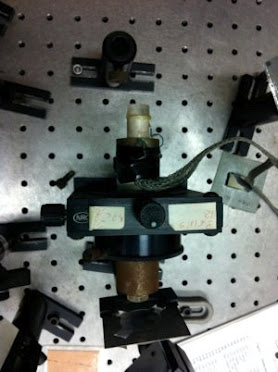

Fabry-Pérot used in the end of the testing
