Boeing 747-200

Our research group performed the first high-order CFD simulation of modern aircraft with AEROFLO.

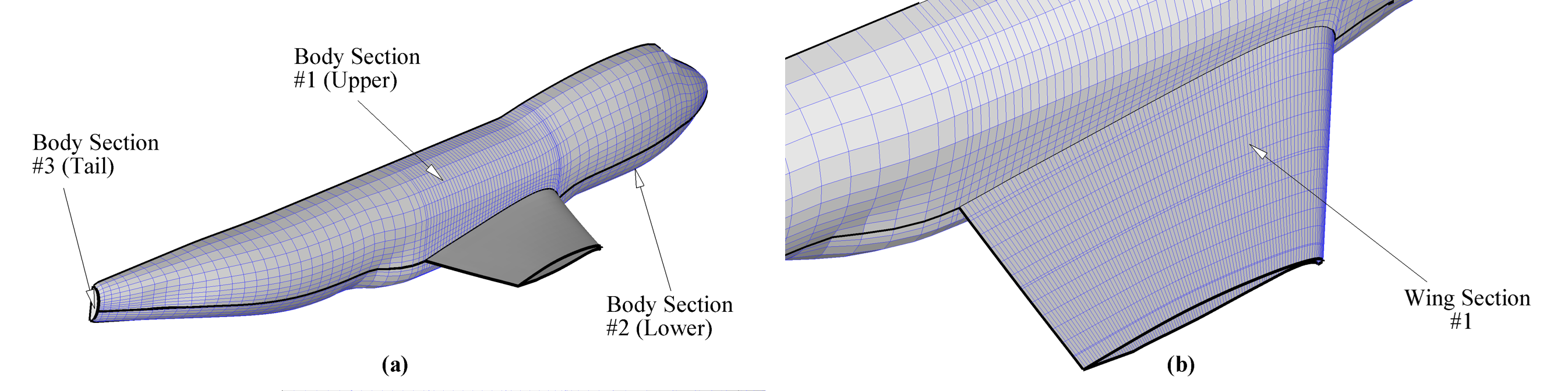

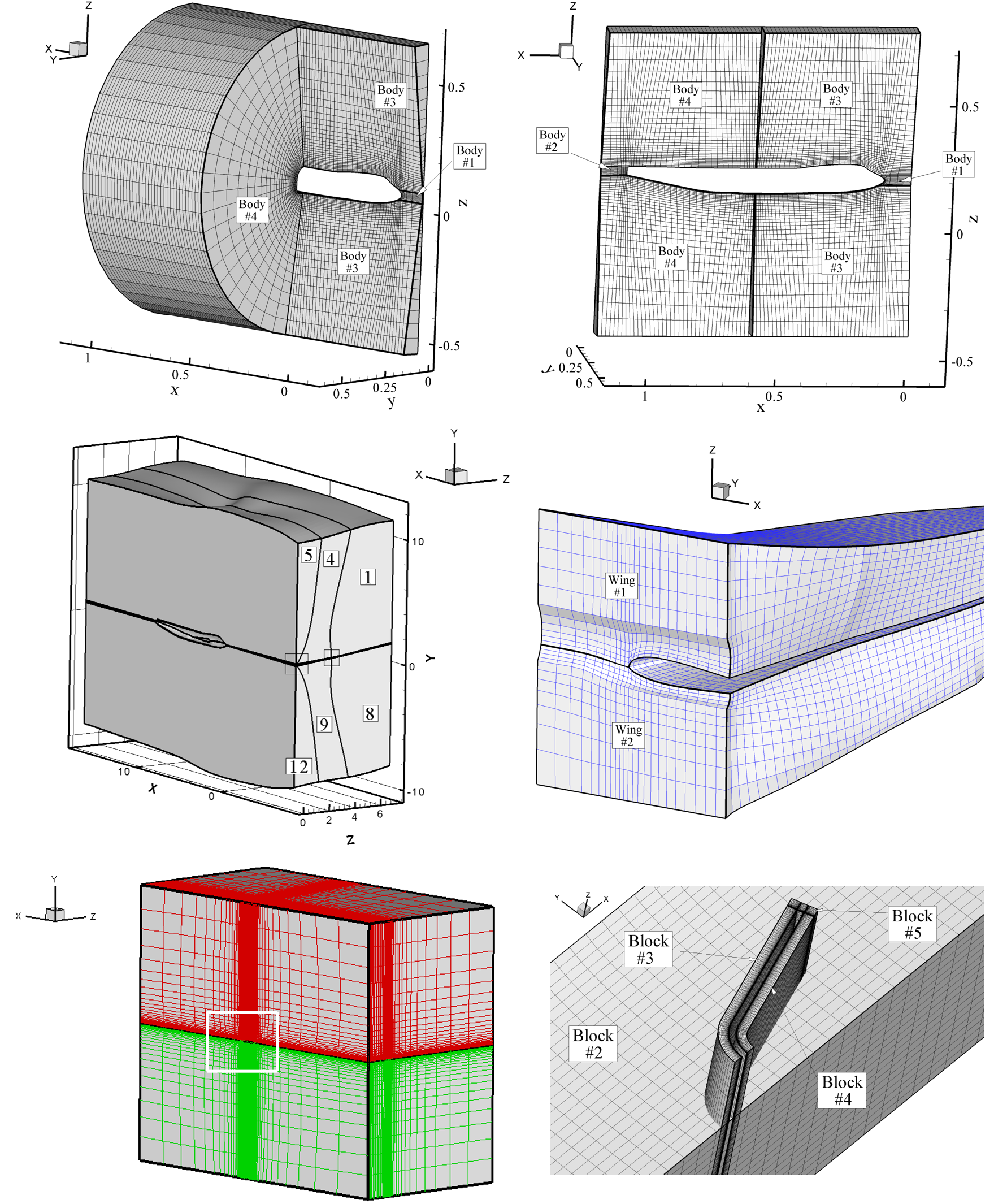

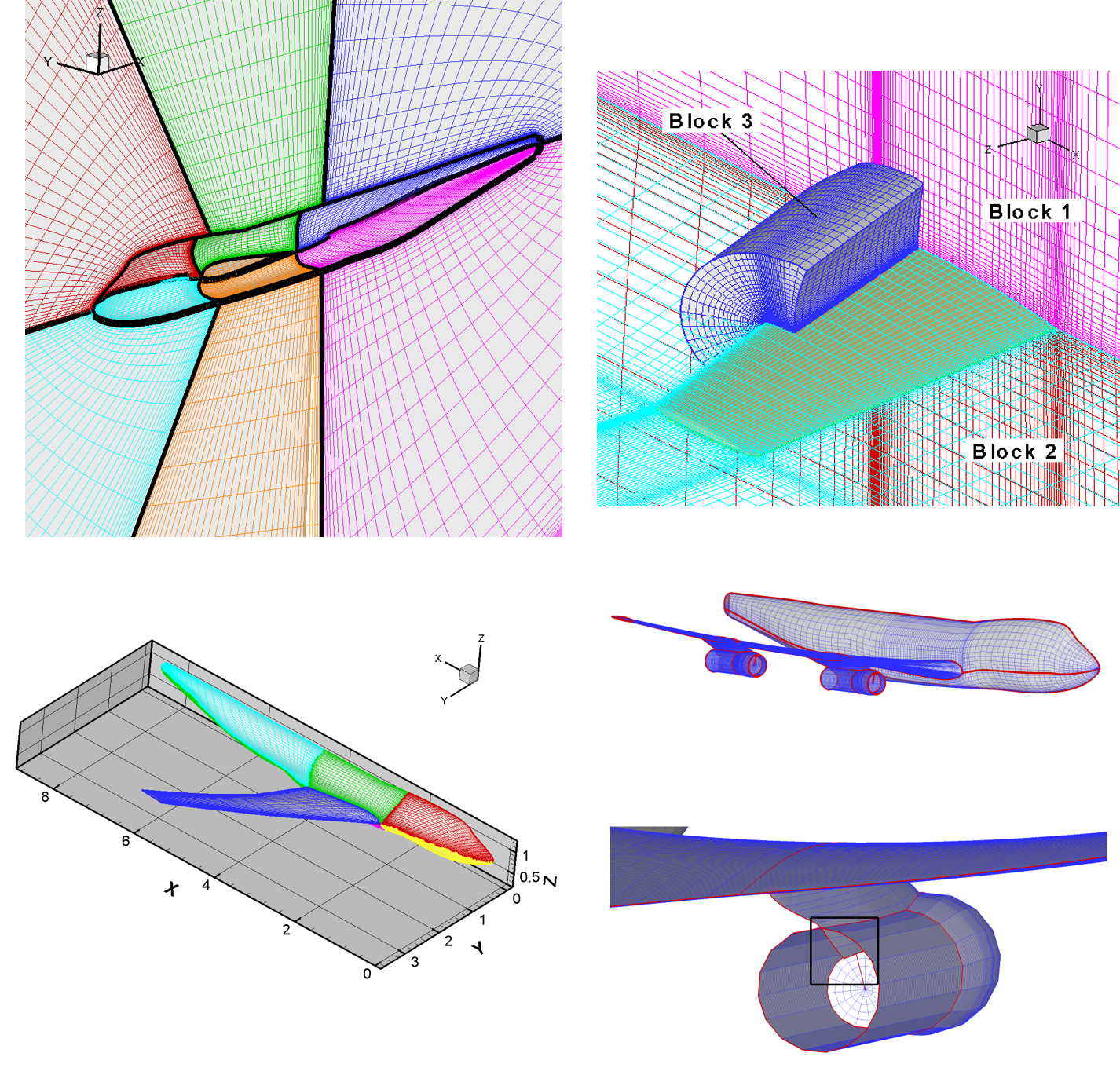

Computational grids for Boeing 747-200 aircraft

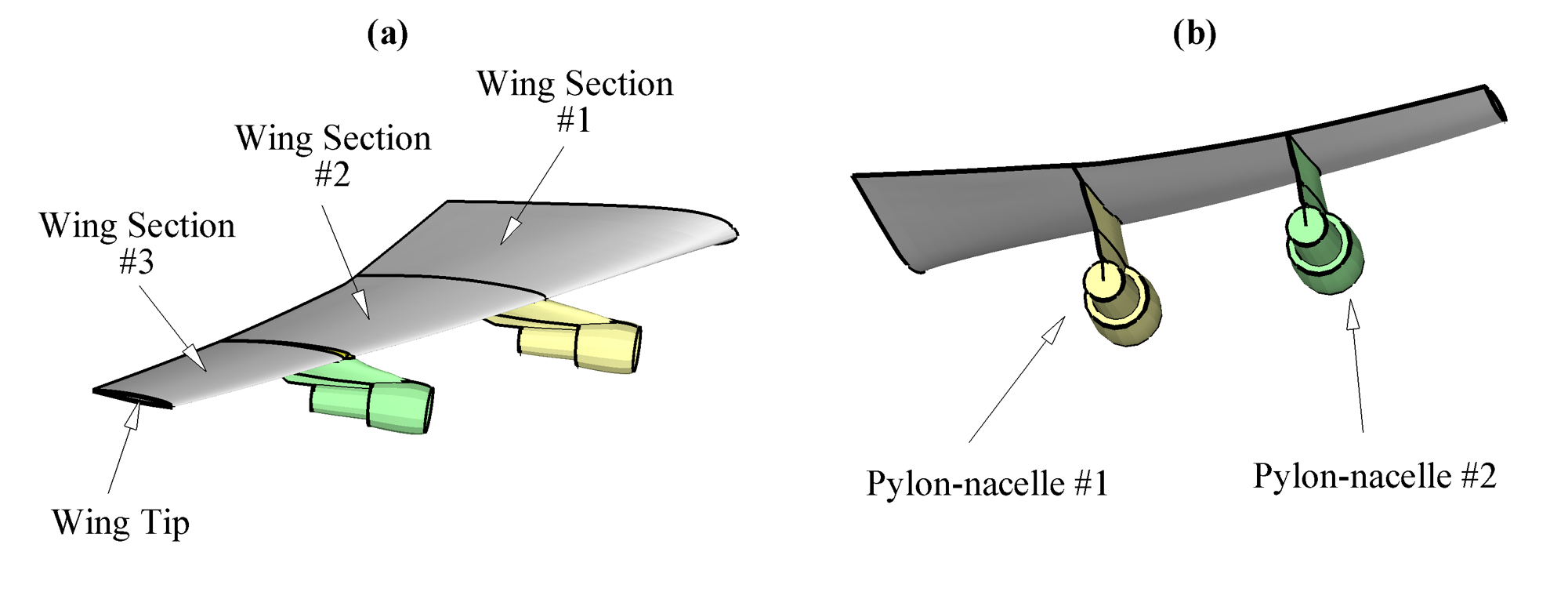

Wing structure of Boeing 747-200

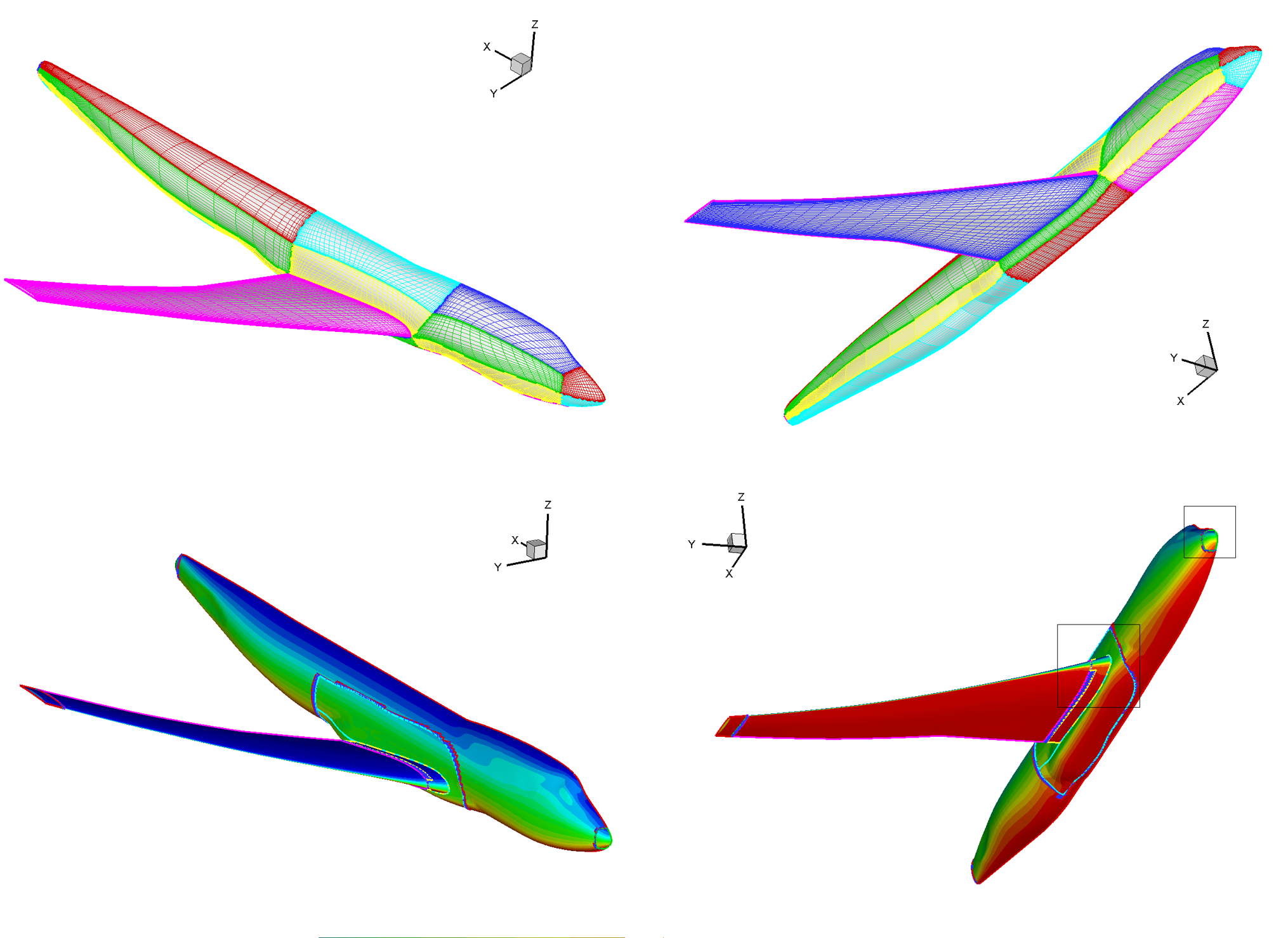

Results (lower) at the view of corresponding computational grid (upper)

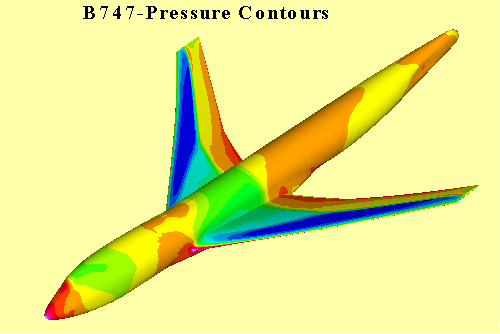

Pressure contour of Boeing 747-200
